PE10-100

Adopting the Stewart parallel configuration, with a load capacity of 5kg, it offers ±20mm translation and ±30° rotation, achieving micron-level positioning accuracy. It is suitable for high-end manufacturing and precise positioning in scientific research.
Get Quote

Specification




PE-10（100）

单位-Unit

※运动空间-Travel range





Tx，Ty，Tz

±20，±20，±6.5

mm

Rx，Ry，Rz

±10，±10，±30

deg

※重复定位精度- Repeatability





Tx，Ty

±1

μm

Tz

±0.25

μm

Rx，Ry

±3

μrad

Rz

±15

μrad

最小步长- Min. incremental motion





Tx，Ty，Tz

0.5

μm

Rx，Ry，Rz

10

μrad

运行速度-Velocity





Tx，Ty，Tz

3

mm/s

Rx，Ry，Rz

3

deg/s

反向间隙-Backlash





Tx，Ty

5

μm

Tz

3

μm

Rx，Ry

20

μrad

Rz

60

μrad

系统刚性- Stiffness





X，Y

0.7

N/μm

Z

8

N/μm

其他性能- Other performance





负载能力（正装/任意）

-Load(base plate horizontal / any )

5/2.5

Kg

断电保持力（正装/任意）

-Holding force(base plate horizontal / any )

15/2.5

N

质量-Mass

2.1

Kg

工作温度-Operating temperature range

0~50

℃

供电需求-Main power

110-220VAC/50-60Hz








※The motion space refers to the maximum range of motion for a single degree of freedom when the system is in its zero position state.

※The repeatability accuracy refers to the one-way repeatability accuracy, taking one standard deviation.

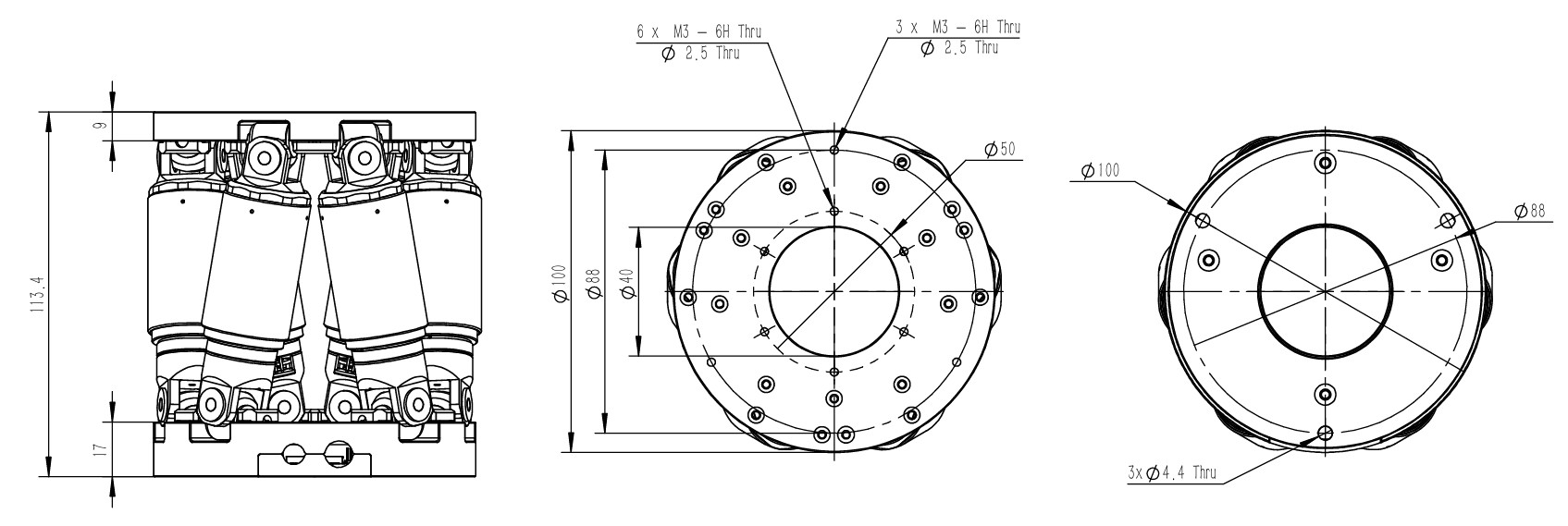

Dimension Drawing
